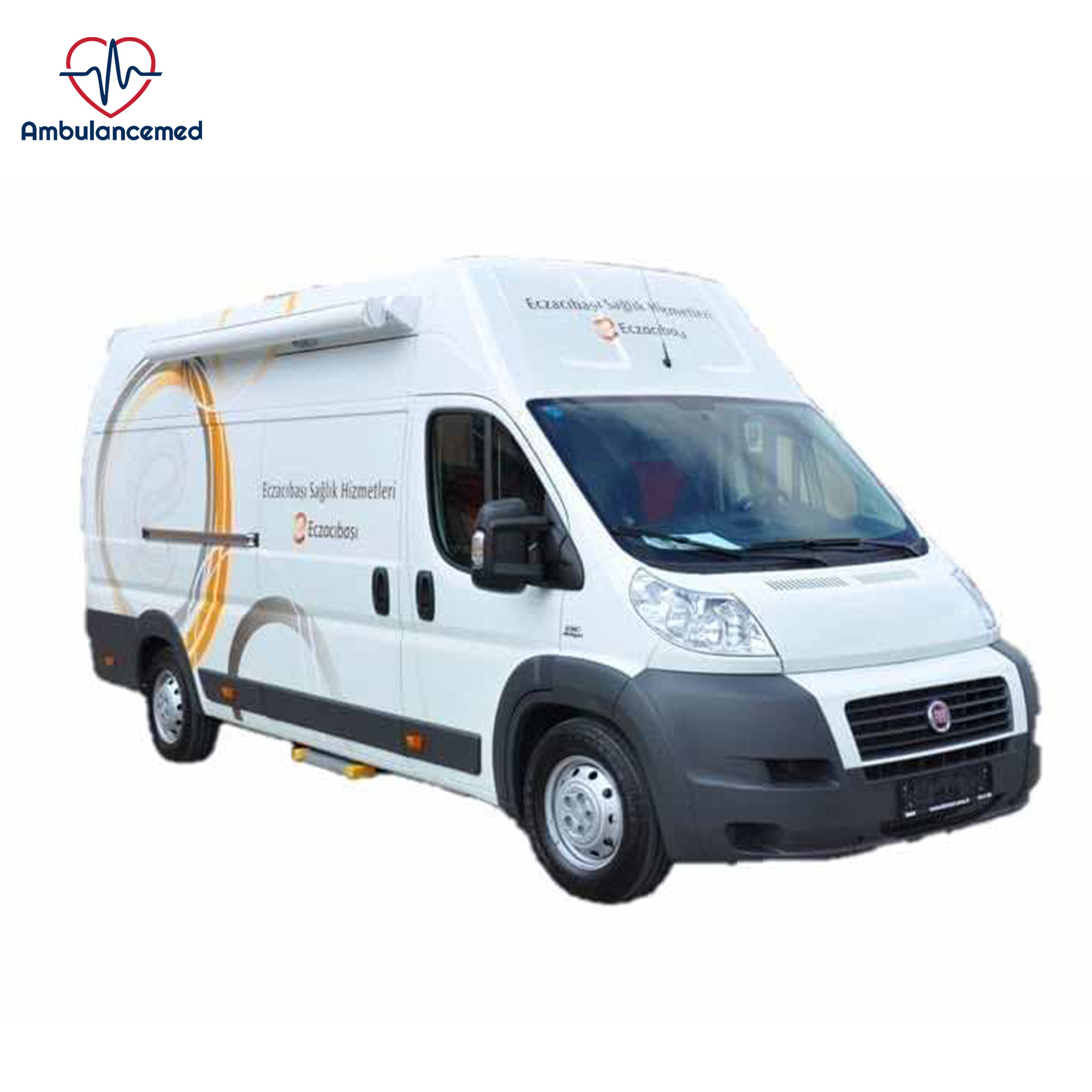

Mobile x-ray vehicle donated with the equipment that takes digital views. The vehicle consists of four main sections that x-ray room, x-ray checking room, laboratory examination room, and technical room.

The box of the mobile x-ray coated with polyurethane sandwich panels. In addition, its external surface is completely sealed with a silicon material which provides sound and heat insulation to the box. The materials used in the vehicle are fire-proof. It is determined three glasses in total on the box. The vehicle has two doors.

The X-ray room

There is an x-ray device placed in the room. It conveys the display taken from the patient to the examination room.  Also, there is a generator of x-ray in the room. It is placed a snail type air-conditioner on the ceiling and the ground.  There is a red lamp operates during the x-ray shoot placed out of the x-ray room.

The external walls of the x-ray room completely covered with bullet material. The health employee staying out of the room protected against the detrimental ions coming from the device by that insulation. The radiation amount on the outer layer of the door doesn’t cross over 2.8 MSV/s. The door of the room is designed as a sliding type and coated with the bullet the same as the doors. A radiation-retarding glass determined in the middle of the door.

There is an air-conditioner having split feature in the room.

Technical room

There are two water tanks, 100 liters each, for clean and dirty water separately. The water coming from the tank distributed in the vehicle by a hydrophore. Also, it is provided that hot water flows in the vehicle. There is a silent type 10 Kva generator with gasoline in the technical room. In fact, it can be mounted out of the vehicle if requested.

There is a window within the x-ray room and controlling room in order to enable the communication between these two. The radiation amount on the outer layer of the window doesn’t cross over 2.8 MSV/s. There is a visual communication system in the examination and x-ray room in order to enable communication among these two.

There is an air-conditioner in the room. It presents requiring estrangement to the system.

Mobile X-Ray Vehicle Examination Room

It is placed in a doctors’ seat, examination seat, computer, a sink having hot and cold water in the room. The area where clean and dirty water deposited in the technical room. There are storage space and a bench for the doctor to use them. Antibacterial and antistatic epoxy material used in the covering of the ground. There are x-ray printers, computers, and monitors in order to investigate the x-ray result. This room designed specially as being prevented against harmful radiation.

The cabinets used in the mobile x-ray vehicle mounted on the ground smoothly in order to reduce the noise occurring from the movement of the vehicle. There are locks on the cabinets in order to block caps and drawers from opening while the vehicle is in motion. There is enough space to initiate banking in the cabinets.

There are two ladders placed out of the box of the x-ray vehicle. One of these ladders has a wheelchair ramp. These ladders and the ramp held in the vehicle during the vehicle is in motion.

There is enough space in the vehicle in order to stock the stuff.

Also, there are special storing areas having shelves, locks, and sliding caps positioned on the cover of the examination room.

Mobile x-ray vehicles can be manufactured from box-type panelvan or a container.  The vehicles with more than 5 tones bearing capacity preferred when a panelvan vehicle used. Iveco or Mercedes can be used as being chassis of the box type vehicle. In fact, It is possible to produce it from the 4×4, container, trailer, or expandable container vehicle.

The X-Ray Imaging System of The Mobile X-Ray Vehicle

There is an x-ray unit operating 32 kW – 150 kW in the system. The power of the x-ray is about 5 kW; the kV range is 100 kV. The filming time is nearly 2 seconds. It is placed in the x-ray room of the vehicle. Siemens Polydoros RF Series X-ray generators used as an x-ray generator of the vehicle. Its power range is 1Kw-500kV. It operates harmoniously with various brands of x-ray units. Also, there is an x-ray tube having 200 khu – 1250 khu operating range in the vehicle.

There are flat-panel detectors in the technical room.  Amorf silicon with TFT: CSL seztim iyodid. There is a 35 cms 190 cms wall stand having a perpendicular feature.

There is a 19 inches working station in order to manage the x-ray unit of the vehicle. It has Full Dicom3 image processing software.

The patient desk having a swimming platform looks through 4 different directions for digital systems. A desk with a lift used if requested.

There is an automatic collimator device with LEDs and a manual controlling feature belonging to the system. It can be used as being arranged for 30 seconds.

Also, a digital monitoring screen placed in the room.

There is an x-ray printer, being able to print out 35×43 cms or 24×30 cms for x-ray sheets. This device operates with the computer placed in the technical room.

The Protection System of The X-Ray

There is a security arrangement in order to protect the tube placed in the x-ray system against overusing and over shouldering. There are heat sensors on the tube for security.

Also, an electromagnetic brake system was set.

It is arranged a special security system that protects tubes from crashes in case of an accident.

A measurement system that times ambient dose out of the x-ray room placed in the room. There are protector aprons for all the employees.

The mobile x-ray vehicle that was manufactured is compatible according to the regulations of the European Union ‘radiation safety requirements in the field of medical’.

The materials used in the vehicle and production techniques are compatible according to ISO 13485, ISO 14001, ISO 45001.

The whole walls of the x-ray room covered with a protective layer against ionizing radiation and radioactive contamination.

The visuals are given on the purpose of exposure. Please get in touch with us for a detailed picture, drawing, and material list.
